corrugated steel culvert pipe is composed of two half round segments which are bolted together to form a round pipe. There two standard method to form a round pipe. flanged nestable corrugated steel pipe and overlapped corrugated steel pipe. It suitable for the small diameter pipe and easy to ship to the oversea marktert
.Technical Specs:
1.Material of steel plate: Q235 steel plate
2.Thickness of steel plate:1.5mm-3mm
3.Shape: Round, Half
4 Assembly:Annular flanged/Nestable
5 Depth of fill: 1.5-60m
6.Pipe Diameter: 400mm-3000mm
7.Corrugation: 68*13,125*25,150*50,
8.Antiseptic treatment: hot dip galvanized zinc ≥610g/m2.
9.Service life more than 70 years.
10:.Standard: JTT 791-2010 ,or AASHTO M36.
11.Application: storm water pipe,Traditional Culverts ,Reline and Rehabilitation Solutions,Arch Bridges,Grade Separations,Wildlife Crossings,Pedestrian Underpasses,Stockpile Tunnels,Utilidors Conveyors Enclosures and many other applications
| Diameter (mm) | Filling height and correspondent Thickness | |||||||||||
| 0.6m | 0.7m | 0.8m | 0.9m | 1m | 2m | 3m | 5m | 7m | 9m | 10m | 13m | |
| 400 | 2.50 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.50 |
| 500 | 2.50 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.50 |
| 600 | 2.50 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.50 |
| 700 | 2.50 | 2.50 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.50 |
| 800 | 2.50 | 2.50 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.50 |
| 900 | 2.50 | 2.50 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.50 |
| 1000 | 3.00 | 2.50 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.50 | 3.00 |
| 1100 | 3.00 | 2.50 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.50 | 3.00 |
| 1200 | 3.00 | 2.50 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.50 | 3.00 | 3.00 | ||
| 1300 | 3.00 | 2.50 | 2.50 | 2.00 | 2.00 | 2.00 | 2.50 | 2.50 | 3.00 | 3.00 | ||
| 1400 | 3.00 | 2.50 | 2.50 | 2.50 | 2.50 | 2.50 | 3.00 | 3.00 | ||||
| 1500 | 3.00 | 2.50 | 2.50 | 2.50 | 2.50 | 3.00 | 3.00 | |||||
| 1600 | 3.00 | 3.00 | 2.50 | 2.50 | 2.50 | 3.00 | 3.00 | |||||
| 1700 | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 | |||||||
| 1800 | 3.00 | 3.00 | 3.00 | 3.00 | ||||||||
Our raw material of the corrugated steel culvert pipe

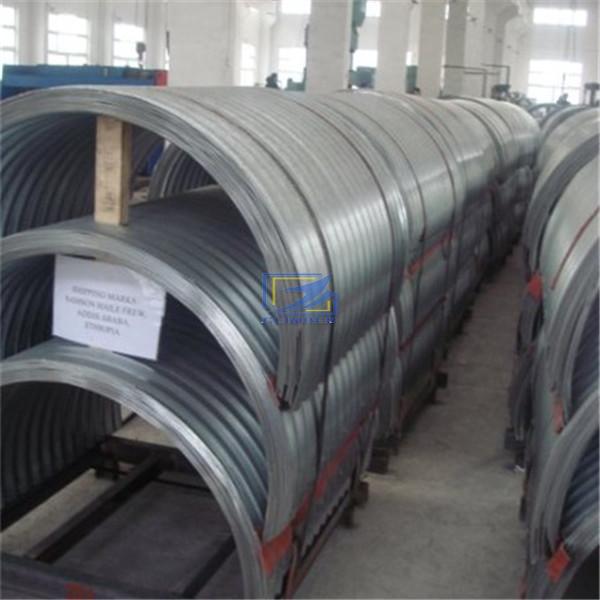

Our semi-finished corrugated steel culvert

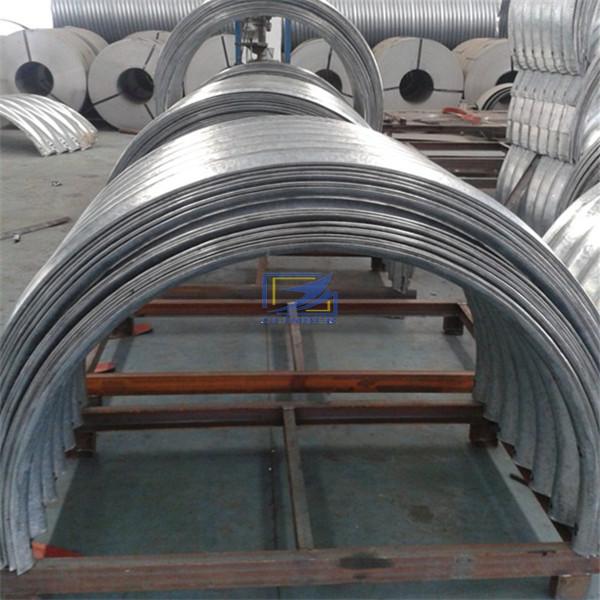

The corrugated steel culvert pipe in stock
