Steam boiler corrugated furnace pipe

The Steam Boiler Corrugated Furnace Pipe is an essential component of modern steam boiler systems, designed to optimize heat transfer, accommodate thermal expansion, and ensure high durability under extreme operating conditions. With its corrugated design, it enhances the efficiency and lifespan of boilers while meeting the demanding requirements of industrial, commercial, and marine applications.

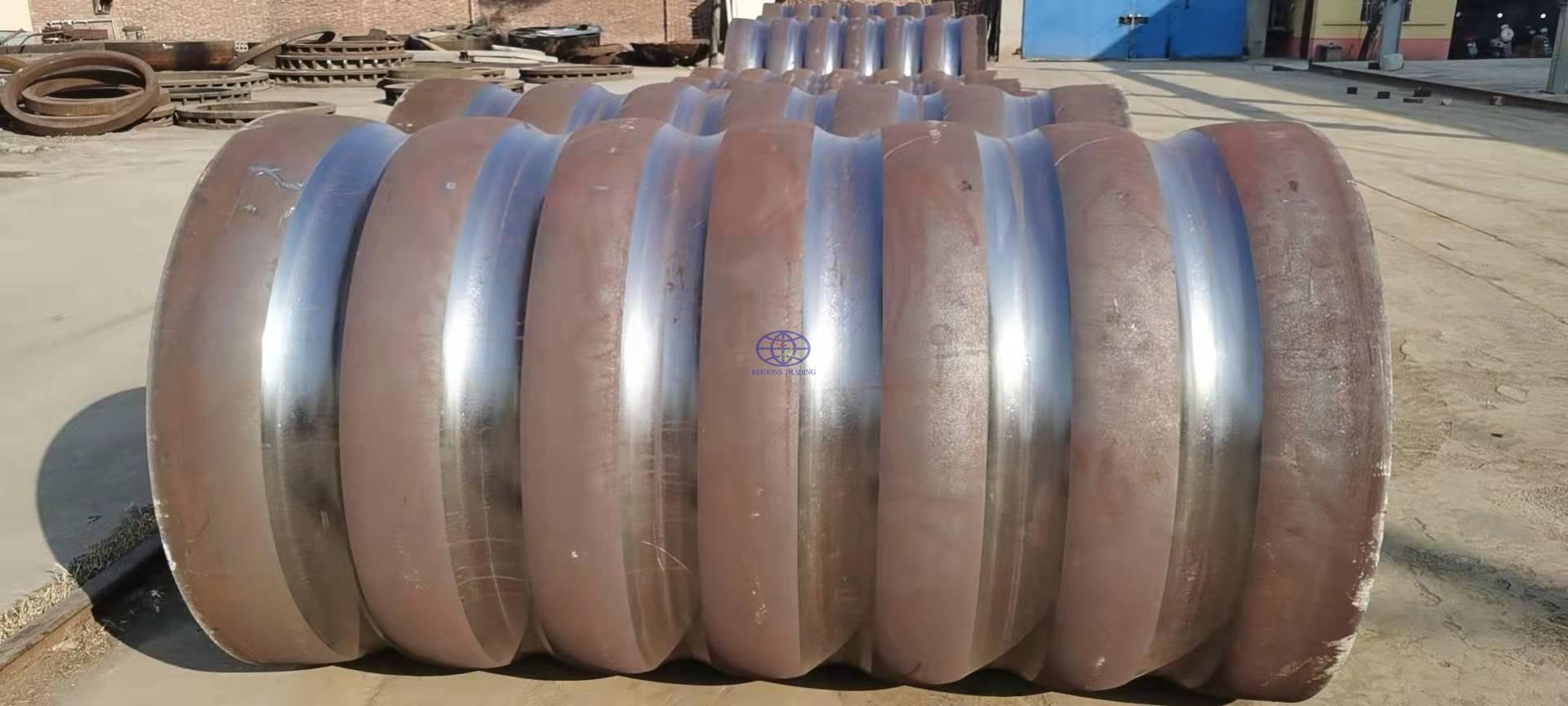

Corrugated furnace

Production length :1800-6000mm

Diameter of work piece:  650-2000mm

Depth of the  corrugation 38-45mm

Sheet thickness of the work piece 8-24mm

Pitch of the corrugation adjustable

Specifications

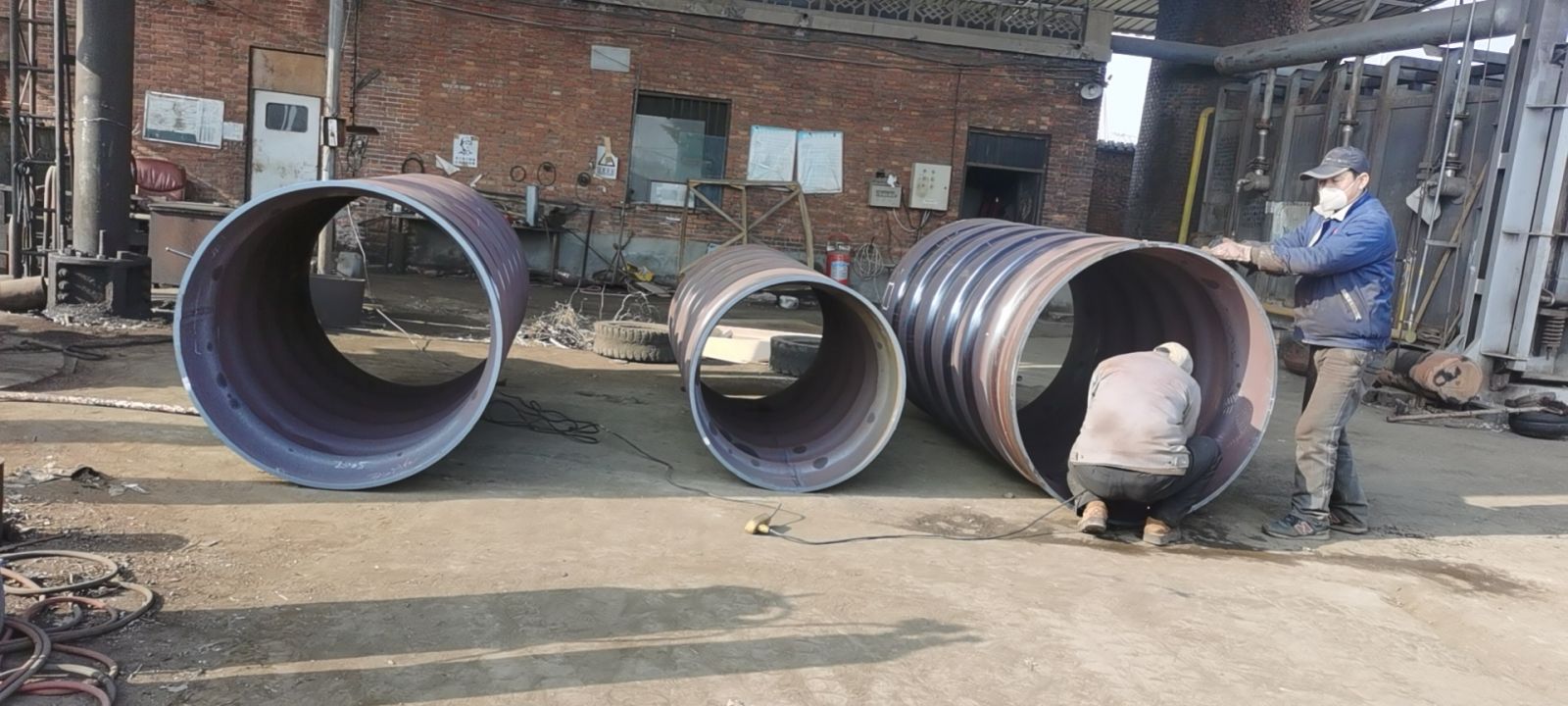

The corrugated furnace inspection

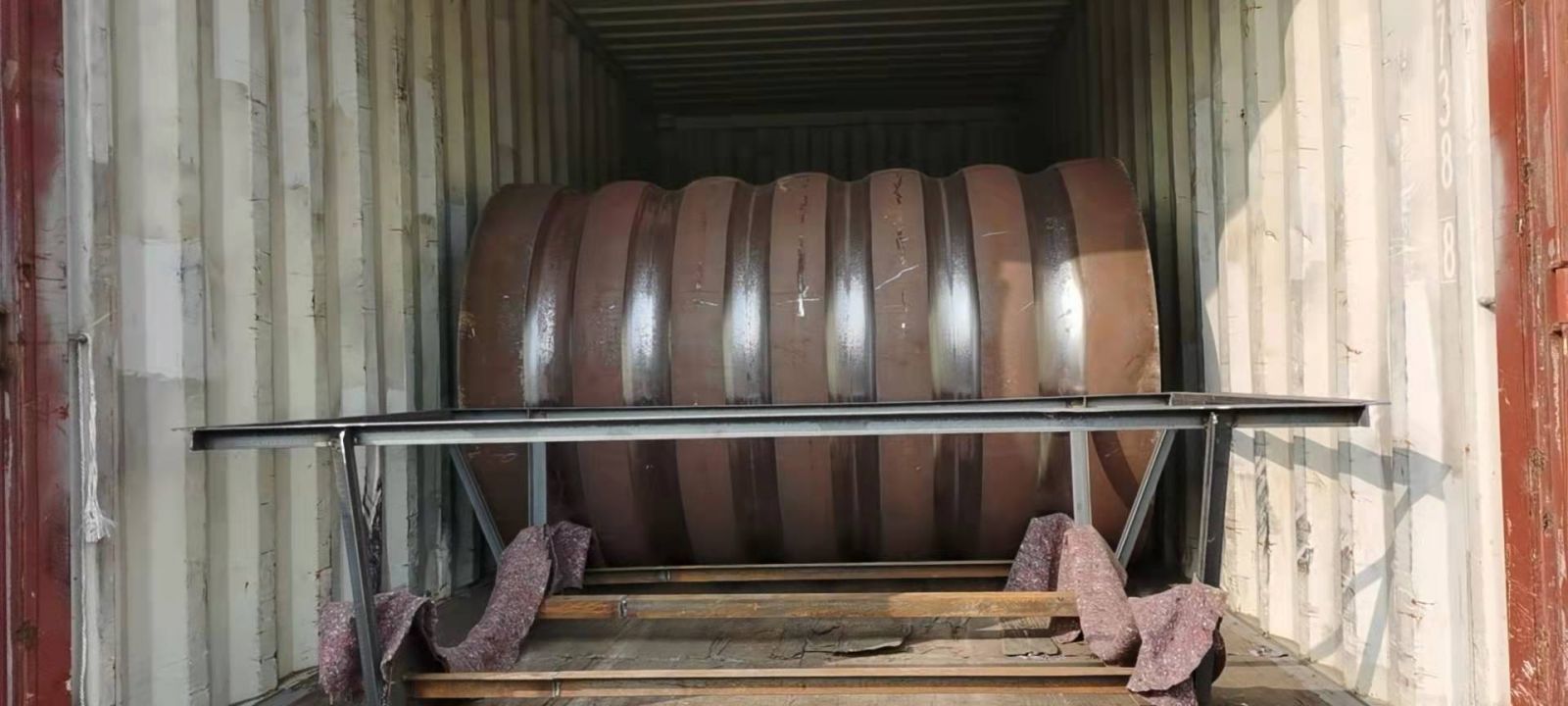

Loading into the container

Corrugated structure Key Features

1. Corrugated Design for Superior Performance

• The corrugated structure increases the surface area for heat transfer, ensuring efficient and uniform heating.

• It allows flexibility to absorb thermal expansion and contraction, reducing stress and preventing deformation or cracking.

2. Durable Materials

• Constructed from heat-resistant and pressure-resistant materials to withstand extreme operating conditions.

3. Adjustable Corrugation Pitch

• Customizable pitch to adapt to specific boiler requirements, enhancing versatility across applications.

4. Wide Range of Sizes

• Available in various lengths, diameters, and thicknesses to fit different steam boiler designs.

5. Precision Engineering

• Manufactured with advanced technologies to ensure consistent quality, durability, and compliance with international safety standards.

Applications

1. Industrial Steam Boilers

• Used in manufacturing plants, food processing, and chemical industries for efficient heat transfer.

2. Power Generation Boilers

• Key component in boilers for thermal power plants, ensuring reliable energy production.

3. Marine Boilers

• Installed in ships and submarines for propulsion and auxiliary systems.

4. Commercial Steam Boilers

• Commonly used in laundries, textile mills, and hospitality industries.

Advantages

1. Enhanced Heat Transfer Efficiency

• The corrugated surface significantly improves thermal conductivity, reducing energy consumption and operational costs.

2. Flexibility Under Thermal Stress

• The corrugations allow the pipe to handle thermal expansion and contraction without cracking or deformation.

3. Customizable Design

• Adjustable corrugation pitch and wide size range make it adaptable to various boiler configurations.

4. Durability and Longevity

• Manufactured from robust materials with precise engineering to ensure long-term reliability under high-pressure conditions.

5. Energy and Cost Efficiency

• Maximizes boiler efficiency by optimizing heat transfer, resulting in reduced fuel consumption and operational costs.

Manufacturing Process

1. Material Selection

• High-quality steel sheets are selected based on the desired thickness and temperature resistance.

2. Corrugation Formation

• The workpiece is processed through advanced corrugation machines to achieve the required depth and pitch.

3. Heat Treatment

• Heat treatment is applied to enhance the material’s strength and resistance to high temperatures and pressures.

4. Quality Assurance

• Each pipe undergoes rigorous testing, including dimensional accuracy, pressure tolerance, and thermal resistance checks.

5. Surface Treatment

• Anti-corrosion coatings or finishes are applied to protect the pipe during operation.

Pricing Table

Note: Prices vary based on material and customization requirements.

The Steam Boiler Corrugated Furnace Pipe is an essential solution for improving heat transfer, enhancing efficiency, and ensuring durability in steam boilers. With customizable options, robust construction, and superior performance, it’s a must-have for industrial, commercial, and marine applications.

Contact us today for a quote or to discuss your specific requirements. Let us help you find the ideal corrugated furnace pipe solution for your steam boiler needs!
